What is a 3D Plantar Scanner?
3D Plantar Scanner is an advanced 3D foot scanning device based on laser technology, capable of performing foot scans in full-weight, semi-weight, and no-weight modes. It accurately detects the foot arch type and height while providing precise measurements of the longitudinal and transverse foot arches.
The PT-Insole Design Software further enhances the process by integrating the 3D plantar model directly into custom insole design workflows. This not only streamlines production but also ensures precise and effective results.
For a more comprehensive foot analysis, the 3D Foot Scanner provides advanced functionality, capturing detailed measurements of the entire foot. This enables specialists to perform a full, highly accurate assessment for precise diagnosis and treatment planning. As a cost-effective alternative, the PT-3D Plantar Scanner focuses on precise plantar surface measurements and arch analysis, making it an ideal solution for streamlined orthotic design without compromising accuracy.
3D Plantar Scanner vs. Optical Scanner
Optical Scanners
Optical or 2D Scanners function primarily as digital foot sizers. Built on 2D scanning technology commonly used for documents, these scanners capture life-size images of the foot’s plantar surface. The scanner is housed within a thick glass casing but lacks sensors or capabilities to measure foot pressure or arch height.
Some of these models attempt to estimate pressure distribution by simulating color variations on the plantar image. However, these representations are not scientifically accurate and fail to provide reliable data for advanced foot analysis.
3D Plantar Scanners
In contrast, 3D plantar scanners deliver highly accurate measurements of the foot sole, leveraging advanced modeling technology. These scanners automatically identify the foot arch type by layering the plantar surface at standardized heights and analyzing the ground contact areas.
The PT-Insole Design Software further enhances the process by integrating the 3D plantar model directly into custom insole design workflows. This not only streamlines production but also ensures precise and effective results.
For a more comprehensive foot analysis, the 3D Foot Scanner provides advanced functionality, capturing detailed measurements of the entire foot. This enables specialists to perform a full, highly accurate assessment for precise diagnosis and treatment planning. As a cost-effective alternative, the PT-3D Plantar Scanner focuses on precise plantar surface measurements and arch analysis, making it an ideal solution for streamlined orthotic design without compromising accuracy.
3D Plantar Scanner Output

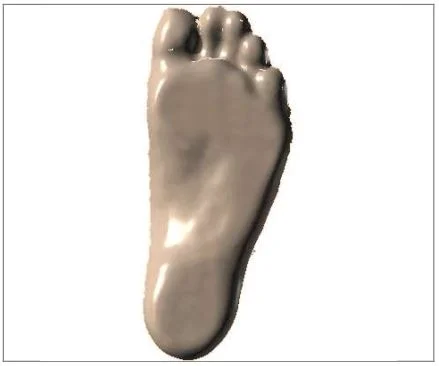

The PayaTek 3D Plantar Scanner produces a highly detailed 3D model of the foot sole in STL/PLY format. This model enables precise measurements of the longitudinal and transverse arch dimensions, heel width, and toe angles. These measurements facilitate a more accurate diagnosis of foot deformities.
The scanner automatically detects foot arch types, categorizing them as flat, normal, or high. It delivers detailed data immediately after each scan, with its automatic measurement function, eliminating the need for additional assessments and saving you valuable time.
The 3D plantar model significantly enhances productivity by enabling the design of highly accurate, comfortable, and efficient insoles. These insoles provide optimal support and cushioning tailored to your client’s feet. The 3D model is automatically applied to the insole in PT-Insole Design software.
3D Plantar and Foot Scanning
Standard foot pressure scanners measure only plantar pressure distribution and are unable to accurately determine foot arch height. Additionally, certain foot abnormalities are not detectable through simple tools like pens, calipers, or rulers. In contrast, 3D foot scanners offer specialists precise measurements of the entire foot and plantar surface, taking into account the unique contours of each patient’s feet. This allows for highly customized and accurate design of insoles and orthotic devices, ensuring optimal compatibility and comfort.
The PT-3D Plantar Scanner significantly enhances productivity by simplifying and accelerating the process of designing precise and comfortable insoles.
This scanner provides detailed plantar surface measurements and accurate arch analysis, to assist specialists that the orthotic solutions created deliver the ideal support and cushioning tailored specifically to each client’s feet.
This scanner provides detailed plantar surface measurements and accurate arch analysis, ensuring that specialists create orthotic solutions with optimal support and cushioning tailored specifically to each client’s feet.

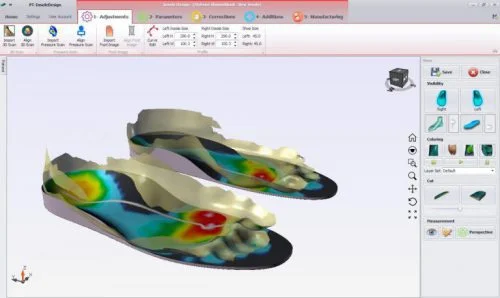

Additionally, with the PT-Insole Design software, the captured 3D foot model is automatically integrated into the insole design, further streamlining the production of customized orthotics.
3D Plantar Scanner Report Includes:
Arch Height: Accurate measurement of the height of the foot’s arch.
Arch Type: Classification of the arch as flat, normal, or high.
Linear Measurements: Precise dimensions of the foot’s length and width.
Angular Measurements: Detailed angles of the foot’s structure for advanced analysis.

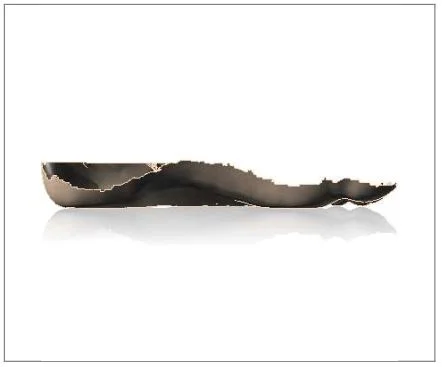

Cross-Section Preview: Visual representation of the foot’s cross-sectional profile.
Single Foot or Two Feet Scanning
The mid-stance phase is a critical point in the gait cycle when the body’s entire weight is supported by one foot. During this phase, capturing the exact dimensions of the plantar surface is essential for accurate analysis. A 3D plantar scanner must replicate the weight-bearing conditions of the mid-stance phase to ensure precise measurements. Therefore, each foot should be scanned individually to achieve the highest level of accuracy and reliability.
How to Use a 3D Plantar Scanner
Follow these steps to use a 3D plantar scanner:
Positioning the Patient:
Non-weight-bearing mode: Ideal for patients with mobility issues. The patient remains lying on the examination bed while the specialist adjusts the scanner’s settings and positions the patient’s foot on the device for scanning.
Seated position: The patient sits on a chair while the examiner positions the knee and ankle joints in a neutral stance, aligns the scanner underneath the foot, and gently lifts the big toe to create a natural arch.
Full-weight mode: The patient stands naturally on the scanner, distributing their weight as usual.
Starting the Scan:
The device features a control button to initiate the scanning process. Pressing the button activates the scanner, which then performs the procedure automatically.
Advanced 3D Foot Scanning: Accurate Measurements for Better Foot Care
A 3D foot scan provides precise measurements of the plantar surface, capturing key physical dimensions such as longitudinal and transverse arch heights, toe angles, and heel structure. This advanced scanning technology allows for the detection and diagnosis of heel deformities, making it an essential tool for orthopedic specialists, podiatrists, and corrective movement experts.
Key Features of the PayaTek 3D Plantar Scanner:
- Portability and Ease of Use: Lightweight and designed for seamless mobility.
- High-Precision Scanning: Achieves an impressive accuracy of 0.1mm.
- Rapid Scanning: Completes scans in just 8 seconds.
- Ergonomic and Adjustable Design: Thoughtfully crafted with an ergonomic body, prioritizing specialists’ needs for ease of use.
- Foam Box Scanning Capability: Scans both foam boxes and feet with ease.
- Comprehensive Weight Modes: Captures foot scans in full-weight, semi-weight, and non-weight conditions.
- Biomechanical Measurements: Accurately analyzes critical foot biomechanics.
- Automated Measurement Mode: Simplifies the process with automatic calculations.
- Powerful Scanning Software: Equipped with PayaTek’s advanced software, allowing specialists to perform customized analyses and measurements with ease.
- Integrated Results Management: Stores foot pressure scan results, posture analysis, and other data in a single folder for streamlined access and organization.
- Standard File Outputs: Delivers STL format, fully compatible with all 3D design software, CAD/CAM systems, and custom insole design tools, making it easy to share results with colleagues or specialists.
How Can a 3D Plantar Scan Benefit Specialists?
A 3D plantar scan delivers highly accurate measurements of the plantar surface, including longitudinal and transverse arch heights, toe angles, and heel dimensions. Additionally, it aids in the detection and diagnosis of heel deformities, making it an essential tool for orthopedic specialists, podiatrists, and biomechanics experts. This advanced technology enhances assessment accuracy, allowing for more precise treatment planning and custom orthotic design.
